8.201 Rooted trees

• Rooted Trees

  • A rooted tree is a directed tree with a distinguished vertex $r4, called a root. Such that, for every vertex v there is a directed path from r to v.



  • A directed tree is represented as a rooted tree if and only if one vertex has in-degree 0 whereas all other vertices have in-degree 1.

  •
  • Terminology of rooted trees.
  • In the image above:
    • A is the root of the tree.
    • B is called the parent of D.
    • E and F are the children of D.
    • B and A are ancestors of E and F (E and F are siblings)
    • B and D are called internal nodes.
    • C, E and F are called external nodes.
  • Depth and height in a tree
  • Depth or path length of a node in a tree is the number of edges from root to that node.



  • Height of a node in a tree is the longest path from that node to the leaf.



  • The depth or the height of a tree is the maximum path length across all nodes.
  • The depth (height) of this tree is 4.
  • Special trees

  • Binary Tree is a rooted tree in which every vertex has 2 or fewer children.



  • Ternary tree is a rooted tree in which every vertex has 3 or fewer children.



  • m-ary tree is a rooted tree in which every vertex has m or fewer children.
  • Regular rooted trees
  • A regular m-ary tree is regular if everyone of its node has exactly m children.



  • Properties

    • m-ary tree has at most $m^h$ vertices as level h.



• Isomorphic Trees

  • 2 trees $T_1$ and $T_2$ are isomorphic if there is a bijection: $f: V(T_1) \rightarrow V(T_2)$ which preserves adjacency and non-adjacency.
  • That is, if uv is an edge in $E(T_1)$ and $f(u)f(v)$ is in $E(T_2)$
  • Notation
    • $T_1 \cong T_2$ means that $T_1$ and $T_2$ are isomorphic.
  • Example



• Properties

  • The properties of graphs also apply to trees.
  • 2 trees with different degree sequences are not isomorphic.
  • 2 trees with the same degree sequence are not necessarily isomorphic.

• Isomorphic rooted trees

  • Two isomorphic trees are isomorphic as rooted trees if and only if there is a bijection that maps the root of one tree to the root of the other.



8.203 Binary search trees

• A binary search tree with labels where they're larger on the right-hand side of the subtree and smaller on the left-hand side.

• Applications
  • It's useful when we want to store a modifiable collection in a memory and be able to search, insert or remove elements from the collection efficiently.
• Binary search trees can be used to solve these kinds of problems.

• Example

  • Build a binary search tree to store 15 records



• Height of a bst

  • 2 methods for finding the height: * Method #1 $2^{h-1} < 1 + N \leq 2^h$ $\equiv$ $h-1 < log2(1 + N) \leq h$ * Method #2 $h = [log_2 (N + 1)]$
• Binary search algorithm
  • Starts by comparing the search element to the middle term in the list.
  • The list is then split into 2 smaller sub-lists of the same size, or where one of these smaller lists has one fewer term than the other.
  • Search continues by restricting the search to appropriate sub-list.

Peer Review

Question 1

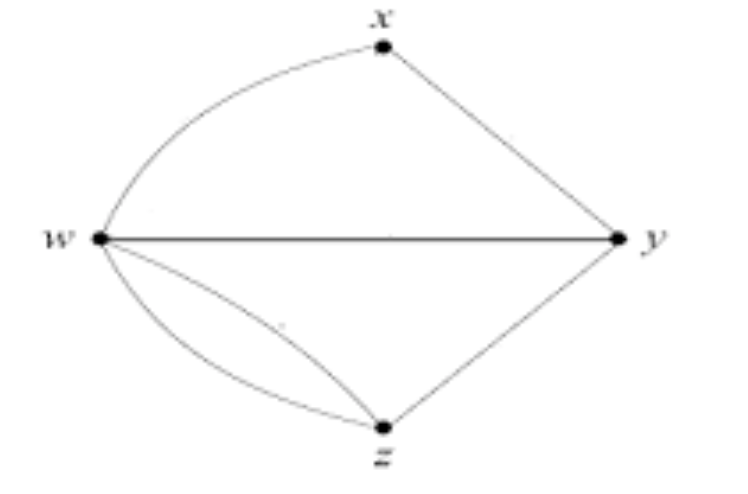

Consider the following graph, G, with 4 vertices, $x$, $y$, $z$ and $w$.

1. Find the degree sequence of the graph $G$.

4, 3, 3, 2

1. Draw two non-isomorphic spanning trees of G.

1. Let $A$ be the adjacency matrix of $G$. Write down $A$.

$$ A = \begin{bmatrix} \ & w & x & y & z \

w & 0 & 1 & 1 & 2 \ x & 1 & 0 & 1 & 0 \ y & 1 & 1 & 0 & 1 \ z & 2 & 0 & 1 & 0 \end{bmatrix} $$

1. What information does the sum of elements in A tell you about G?

The sum of elements is: $1 + 1 + 2 + 1 + 1 + 1 + 1 + 1 + 2 + 1 = 12$ From that information, we know that the numbers of edges is 12 / 2 = 6
